Trusted Air Blowers & Accessories, Aqua Culture Blowers, Tri-Lobe Roots Blowers, Ring Blower, Acoustic Enclosure for Blowers Manufacturer, Supplier & Exporter from Pune, Maharashtra, India.
Blowers are essential for aeration processes in biological treatment systems. Our blowers deliver consistent airflow with low noise and energy-efficient operation, supporting effective oxygen transfer and stable treatment performance.
- Aeration for STP & ETP plants
- Energy-efficient and low-noise operation
- Designed for continuous duty

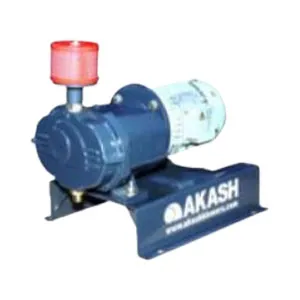

Air Blower Technical Specification
| Inlet/Outlet (mm) | Motor (HP) | RPM | M³/HR at 1000 mmWG | M³/HR at 2000 mmWG | M³/HR at 3000 mmWG | M³/HR at 4000 mmWG | M³/HR at 5000 mmWG |
|---|---|---|---|---|---|---|---|
| 25 | 0.75 | 940 | 19 | 17 | 15 | — | — |
| 40 | 0.75 | 1440 | 24 (0.60 BHP) | 22 (0.69 BHP) | 19 (0.81 BHP) | 16 (0.95 BHP) | — |

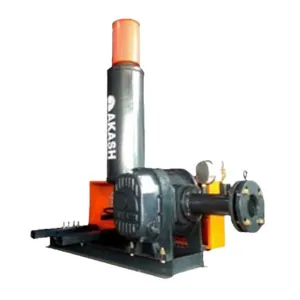

Aqua Culture Blowers
| Capacity (M³/HR) | Pressure (mmWG) | Recommended Motor (HP) | Line Size (mm) |
|---|---|---|---|
| 75 | 2000 | 1.5 | 40 |
| 100 | 2000 | 2 | 40 |
| 175 | 2000 | 3 | 80 |
| 250 | 2000 | 5 | 80 |
| 550 | 2000 | 7.5 | 100 |
| 800 | 2000 | 10 | 125 |
| 1050 | 2000 | 12.5 | 150 |
| 2200 | 2000 | 25 | 200 |
Outstanding Features
- 100% Oil-Free Air
- Low Noise Level (internal silencer)
- Less Vibration
- Extended Life with External Bearings
- Suitable for Pressure & Vacuum Applications
- Fully Copper Winding
- Easy to Install and Maintain
- Pulsation-Free Air
- Powder Coated Panels with Glass Wool Insulation
- Space-Saving Compact Design
- Direct Drive Motor
- Low Power Consumption

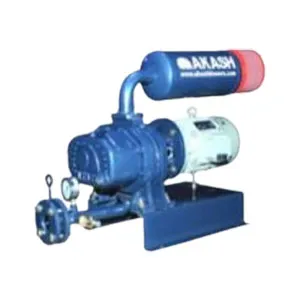

Tri-Lobe Roots Blowers
- Employs two Tri-Lobe impellers rotating in opposite directions inside a closed casing
- Precision-machined alloy steel, hardened and ground timing gears
- Ensures perfect clearance and smooth rotation
- Delivers 100% Oil-Free Air
- Highly reliable for continuous STP/ETP operations

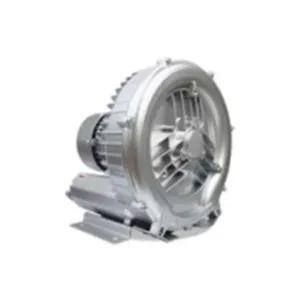

Ring Blower
- Type : Regenerative Side Channel Blower
- 100% Oil-Free, Pulsation-Free Air
- Suitable for both Vacuum and Pressure applications
- Low noise and vibration
- Compact, light-weight, and energy-efficient design
- Available in single - stage and double - stage models
- Ideal for : Aeration, pneumatic conveying, and STP/ETP systems
Ms Blower Header
| Parameter | Specification |
|---|---|
| Application | Air distribution from blower to diffusers in STP |
| Material of Construction | MS (IS: 1239 / IS: 3589 Grade), heavy duty |
| Coating / Lining | Internal epoxy coated / painted with anti-corrosive paint |
| Size Range | 2” to 8” NB (customizable as per blower capacity) |
| Design Pressure | 4 – 6 kg/cm² (typically) |
| End Connections | Flanged (Table D/E) or threaded (as required) |

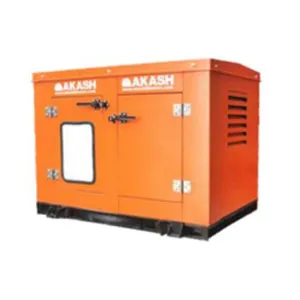

Acoustic Enclosure for Blowers
- Purpose : Soundproofing for blower units
- Reduces noise by 10 – 20 dB(A)
- Modular design – easy to dismantle and assemble
- MOC : Powder-coated CRCA/MS sheets
- Interior insulated with electrostatically charged glass wool sandwich panels
- Proper air ventilation system for blower cooling
- Provides safe, quiet, and compact housing for outdoor or indoor installations.
