MBR Membranes for High Quality Effluent and Water Reuse Applications, Including Compact Design, Reduced Sludge Production and Superior Water Purification
MBR (Membrane Bioreactor) membranes combine biological treatment with membrane filtration to produce high-quality treated water. Our MBR membranes offer excellent filtration efficiency, compact design, and reliable performance, making them suitable for advanced wastewater reuse applications.
- Compact treatment solution
- High filtration efficiency
- Suitable for water reuse
Membrane Material
PVDF (Polyvinylidene Fluoride): Most common, often reinforced with PET (polyester) for strength.
Form: Hollow fiber (various diameters) or flat sheet (elements in a module).
Filtration Performance
Pore Size: 0.08 to 0.1 micron (ultrafiltration range).
Flux Rate: Varies widely (e.g., 10-25 L/m²·h) depending on wastewater and operational conditions (e.g., municipal vs. industrial).
Water Permeability: High water flow achievable.
Operating Conditions
Temperature: 5°C to 40°C (41°F - 104°F).
pH Range: Broad, often 2 to 12, depending on chemicals used.
Max. Chlorine Tolerance: Up to 1,000 ppm for chemical cleaning/disinfection.
Output Water Quality
Turbidity: ≤ 0.2 - 0.5 NTU (Nephelometric Turbidity Units).
Suspended Solids (SS): < 5 mg/L, effectively removing bacteria, colloids, and microorganisms.
Module Design

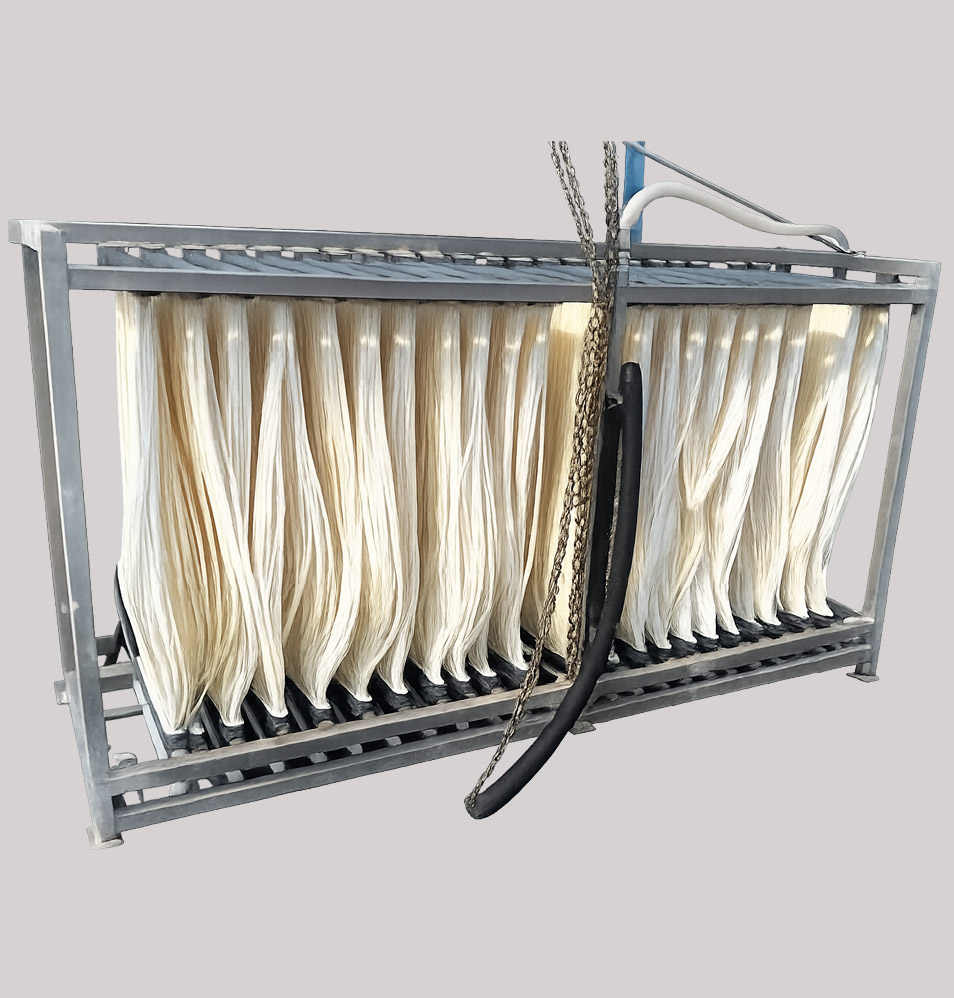

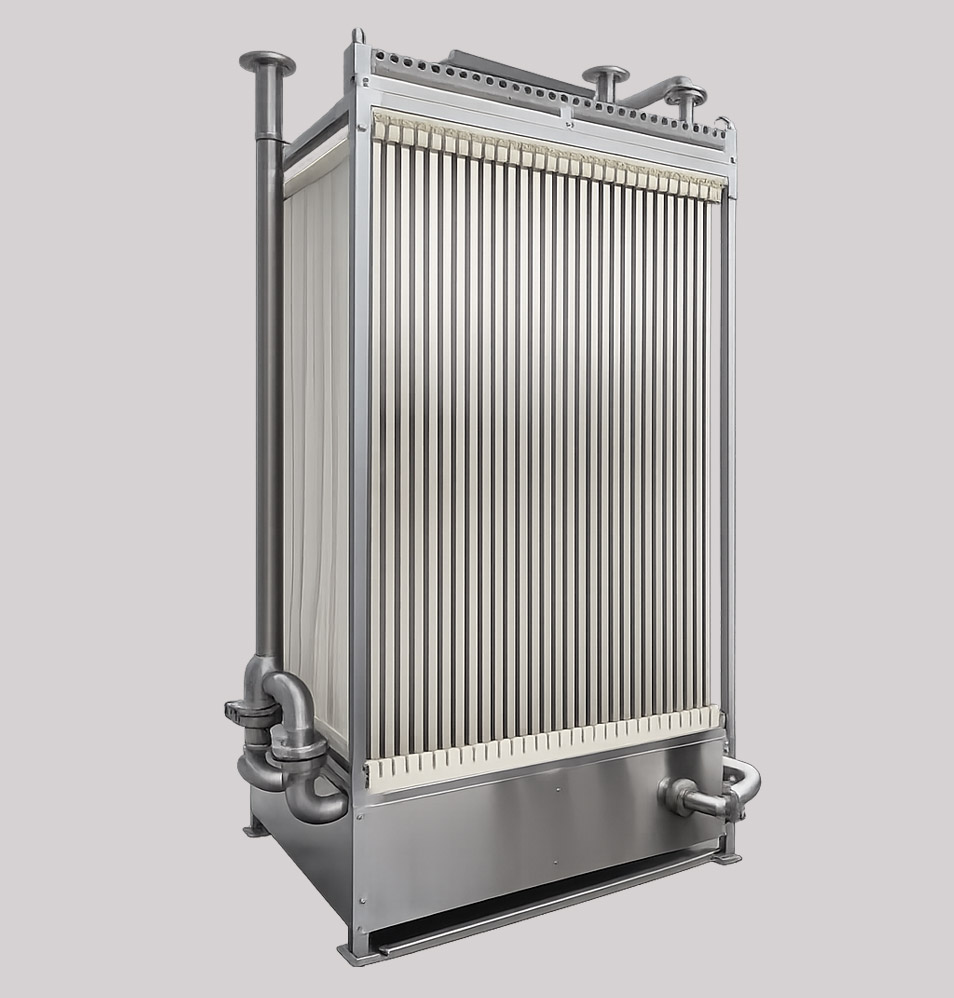

Configuration: Submerged modules with aeration, often rectangular or cassette-type.
Support: Reinforced structure (e.g., braided core for hollow fibers, support frames for flat sheets).
