Filtration & Tertiary Treatment High Quality Effluent for Water Reuse, Including Improved Water Quality, Compliance with Standards and Environmental Protection

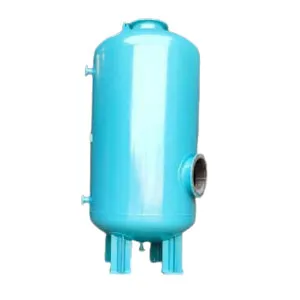

Tertiary Treatment
Average Technical specification for PSF and ACF:
| Type | Vessel Size (Dia x H) | Flow Rate (m³/hr) | Media Volume (kg) | Operating Pressure (kg/cm²) |
|---|---|---|---|---|
| Pressure Sand Filter | 600 mm × 1500 mm | 3 – 5 | ~200 – 250 | 2.5 – 4.0 kg/cm² |
| Pressure Sand Filter | 1400 mm × 2000 mm | 20 – 25 | ~1100 – 1200 | 2.5 – 4.0 kg/cm² |
| Activated Carbon Filter | 600 mm × 1500 mm | 3 – 5 | ~100 – 150 | 2.5 – 4.0 kg/cm² |
| Activated Carbon Filter | 1400 mm × 2000 mm | 20 – 25 | ~700 – 800 | 2.5 – 4.0 kg/cm² |

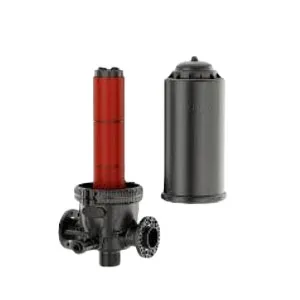

Disc Filter
| Type | Filter Element | Filtration Degree | Flow Rate per Unit | Disc Material | Body Material | Operating Pressure (bar) |
|---|---|---|---|---|---|---|
| Modular, Automatic Backwash Disc Filtration | Stacked grooved plastic/polymer discs | 20, 50, 100, 130, 200 microns (selectable) | 5 – 50 m³/hr (depends on model & micron rating) | PP (Polypropylene) or PA (Polyamide), UV stabilized | Glass-filled nylon, PP, or coated MS | 2.0 – 6.0 bar kg/cm² |

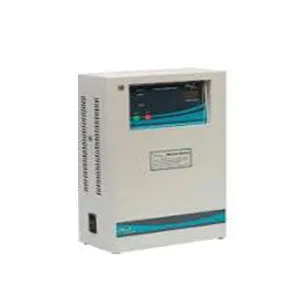

Ozonator with Oxygen Generator
| Capacity | Type | Cell MOC | Ozone Tube | Oxygen Generator | Oxygen Purity |
|---|---|---|---|---|---|
| 10 – 400 grams | Corona Discharge | SS 316 Jacketed Air Cooled | Silicon / Teflon | Included | 95% |
UV Disinfection System
| Type | Flow Rate Capacity | UV Intensity | Disinfection Efficiency | Power Supply | Installation | Cleaning System |
|---|---|---|---|---|---|---|
| Low-pressure High-output (LPHO) UV System | 1 – 500 m³/hr (model dependent) | ≥ 30,000 µW·sec/cm² (typically up to 60,000) | 99.99% removal of bacteria, viruses & protozoa | 230V AC / 415V AC, single/three-phase | Vertical or horizontal inline | Manual or automatic quartz wiper |
